Product Details:
|
| Warranty: | More Than 5 Years | After-sale Service: | Online Technical Support, Other |
|---|---|---|---|
| Application: | Office Building, Hotel, House, Booth, Office, Shop | Use: | Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant |
| Product Type: | Container Houses | Design Style: | Modern |
| Color: | White/Gray/Black Etc. | Size: | 20ft 0r 40ft |
| Material: | Steel + Sandwich Panel | Frame: | Galvanized Steel Frame |
| Style: | Modern | Floor: | 18mm MgO Board |
| Window: | PVC Sliding Window | Project Solution Capability: | Graphic Design, 3D Model Design, Total Solution For Projects |
| Port: | Qingdao /Tianjing/Shanghai/Gunagzhou |
Folding Container House Details | ||||||||||
Type | Specifications | Material name | Size | Thickness | Qty/piece, meter | |||||
Basic Features | External dimension (mm) | 5800*2350*2360 | ||||||||
Internal dimension (mm) | 5640*2190*2220 | |||||||||

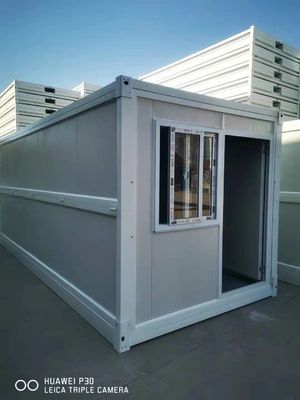

Folding state (mm) | 5800*2350*420 | |||||||||
Total mass (kg) | 1300 | |||||||||
Design Parameters | Structural design service life | 10 years | ||||||||
Ground live load | 200kg/㎡ | |||||||||
Roof live load | 100kg/㎡ | |||||||||
Wind load | Grade 8 | |||||||||
seismic fortification intensity | Grade 10 | |||||||||
Frame Structure | Top frame | Q235B rectangular square tube | 40*80*2.0m | 1.8 | 5 | |||||
Q235B rectangular square tube | 20*40*5.8 | 1.8 | 1 | |||||||
Q235B rectangular square tube | 80*80*5.64m | 1.8 | 2 | |||||||
P-tube | 40*80 | 1.8 | 2 | |||||||
Galvanized sheet | 5.75m*1.5m | 0.8 | 2 | |||||||
Glass wool | 11.6m*1.5m | 0.75 | 12 | |||||||
Ceiling board | 0.37 | 3 | ||||||||
5.8m noodles | Q235B rectangular square tube | 40*80 | 1.8 | 8 | ||||||
L-shaped steel plate (galvanized sheet) | 1.06m | 2 | 4 | |||||||
L-shaped steel plate (galvanized sheet) | 1.075m | 2 | 4 | |||||||
P-tube | 40*80*5.84m | 1.8 | 8 | |||||||
P-tube | 1.05m | 1.8 | 4 | |||||||
Hinge | High strength | 1.8 | 34 | |||||||
wallboard | 9700*2480m | 0.3 | 8 | |||||||
Galvanized angle | 0.97m | 0.8 | 16 | |||||||
D-type E-type adhesive tape | 5.8m | 24 | ||||||||
2.35m noodles | P-tube | 2640 | 1.8 | 4 | ||||||
2485 | 1.8 | 4 | ||||||||
2400 | 1.8 | 1 | ||||||||
860 | 1.8 | 1 | ||||||||
wallboard | 950 | 0.3 | 8.66 | |||||||
Galvanized angle | 50# | 0.8 | 20.41 | |||||||
window | 2 | |||||||||
Hanging head baffle | 8 | |||||||||
door | 1 | |||||||||
Black tape | 21.32 | |||||||||
Bottom frame | Custom sill (galvanized sheet) | 160*80*5.9m | 2 | 2 | ||||||
80*80 | 1.8 | 2 | ||||||||
Hinge | High strength | 4 | ||||||||
C-section steel | 1.8 | 14 | ||||||||
floor | 1165*2690 | 15mm | 5 | |||||||
Angle steel | 30# | 3.5 | ||||||||
Top of box | Integral frame coating | Electrostatic spraying / direct white plastic powder | ||||||||
External roof | Galvanized sheet 0.8mm | |||||||||
Interior ceiling | Color steel veneer V / 830 / 0.37mm | |||||||||
Wallboard | 5.8m noodles | 50mm composite board 0.3mm + glass wool (unit weight: 28KG) + 0.3mm | ||||||||
2.35m noodles | 50mm composite board 0.3mm + glass wool (unit weight: 28KG) + 0.3mm | |||||||||
Floor | Fireproof glass magnesium floor 15mm | |||||||||
Electrical System | Electrical wiring, in strict accordance with the moisture-proof standard installation, all electrical products meet CE certification. Connect the circuit according to the code of circuit engineering, indoor: incoming wire 4 GB soft copper wire, 1 20A circuit breaker, 2.5 2 socket, 1 5-hole single opening socket, 1 5-hole socket, 1 LED lamp | |||||||||
Anti-theft door | High quality security door (warm white) size: 960mm * 1970mm | |||||||||
Window | 920 * 920 single glass sliding window, plastic steel window, with protective fence, screen window, glass thickness of 4mm (warm white) | |||||||||
